NCERT Example 2 — Some Applications of Trigonometry

NCERT Example

Example 2

ladder · angle of elevation

An electrician has to repair an electric fault on a pole of height 5 m. She needs to reach a point 1.3 m below the top. What length of ladder, inclined at 60° to the horizontal, is required? How far from the foot of the pole should the ladder be placed? Take √3 = 1.73.

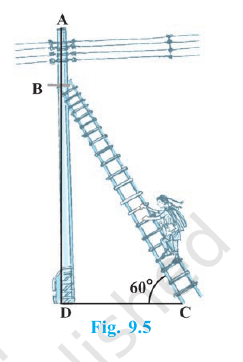

A ladder BC leaning against pole AD to reach point B, making a 60 degree angle with the ground. — Figure 9-5 from the supplied NCERT chapter.

Solution

Board-exam working:

The height reached on the pole is:

BD=5-1.3=3.7\text{ m}

Let BC be the ladder.

\sin60^\circ=\frac{BD}{BC}

\frac{\sqrt3}{2}=\frac{3.7}{BC}

BC=\frac{3.7\times2}{\sqrt3}=\frac{7.4}{1.73}\approx4.28\text{ m}

Let DC be the distance of the ladder from the pole.

\tan60^\circ=\frac{BD}{DC}

\sqrt3=\frac{3.7}{DC}

DC=\frac{3.7}{1.73}\approx2.14\text{ m}

Final answer

Required ladder length ≈ 4.28 m; distance from the pole ≈ 2.14 m.
